T1000 Graphic TSR ARTEINA Etching Press

Our T1000 Graphic TSR is one of our biggest etching presses, with a 1000x1500mm steel bed plate and equipped with a 1/20 gearbox. It contains all the professional features that describe an Arteina press, such as pressure fixing locks on the spindles (to maintain the pressure), milimetre nonius to detect the pressure, bicromated rollers, springs to help the roller back in place, and eight lower bearings and eight adjustable side bearings to guide the bed plate, among other feaures!




Specifications and technical details:

  • STEEL bed plate sizes 1000x1500mm and thickness 10mm.
  • Bed plate equipped with anti-fall system.
  • Bed plate guided by 8 lower bearings and 8 adjustable side bearings.
  • Gearbox in the upper roller (SUPERIOR TRACTION).
  • Equipped with a 1/20 GEARBOX.

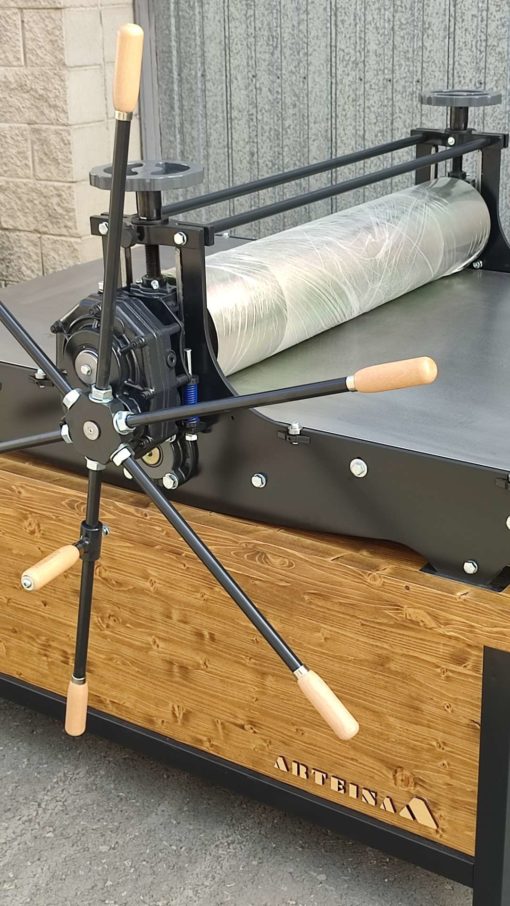

  • Driven by 6 blades with wooden handles and a crank.
  • Upper roller of Ø 200 mm.
  • Rollers are bicromated (Anti corrosion treatment).
  • Upper roller mounted on tilting bearings.
  • M24 steel spindles.
  • Pressure fixer on the spindles, which allows the same pressure to be maintained throughout the run.
  • Millimetre nonius to detect the pressure.
  • Help offered to the upper roller to be recovered back in place by springs.
  • Rubber Silentblock on the legs, for the regulation and levelling of the press.
  • Painted with 2-component Epoxi
  • General sizes of the press:
    -Length: 1500 mm
    -Width: 1400 mm
    -Height: 1400 mm
    -Weight: 450kg approx.
  • Standard Metal Table included (made of 50mm angle)

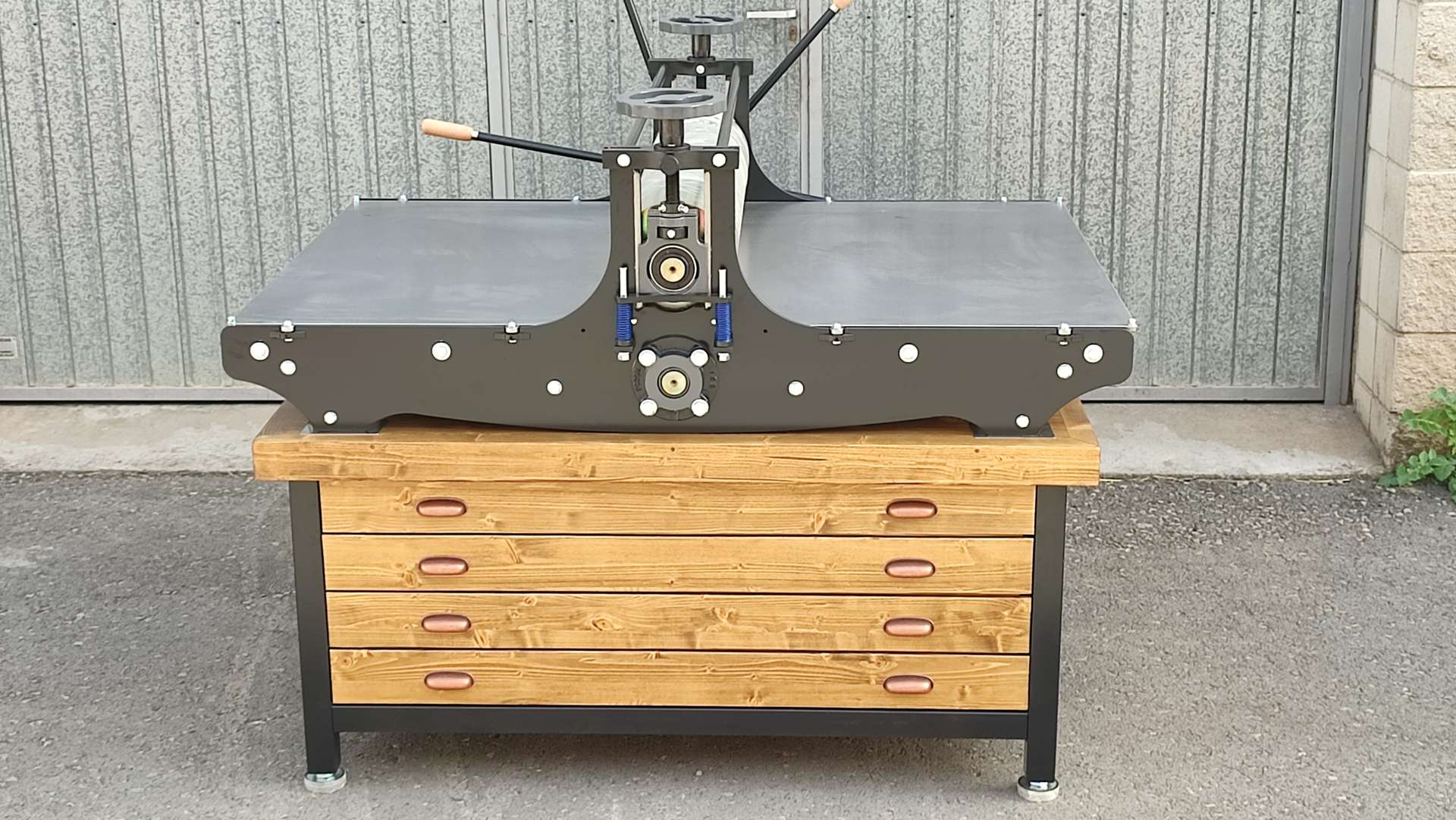

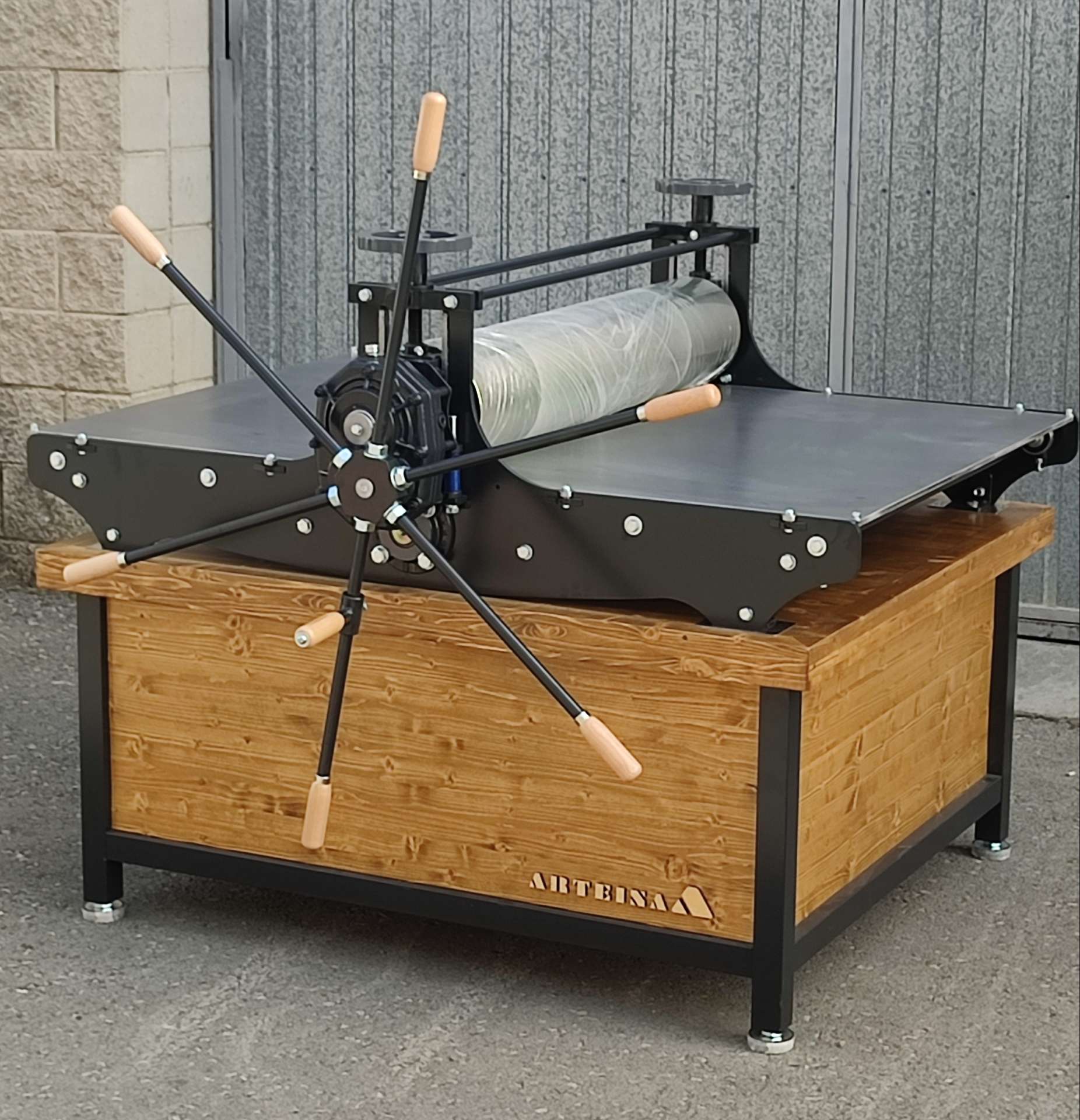

  • Drawers Chest + Drying Rack (shown in the photos) not included.
