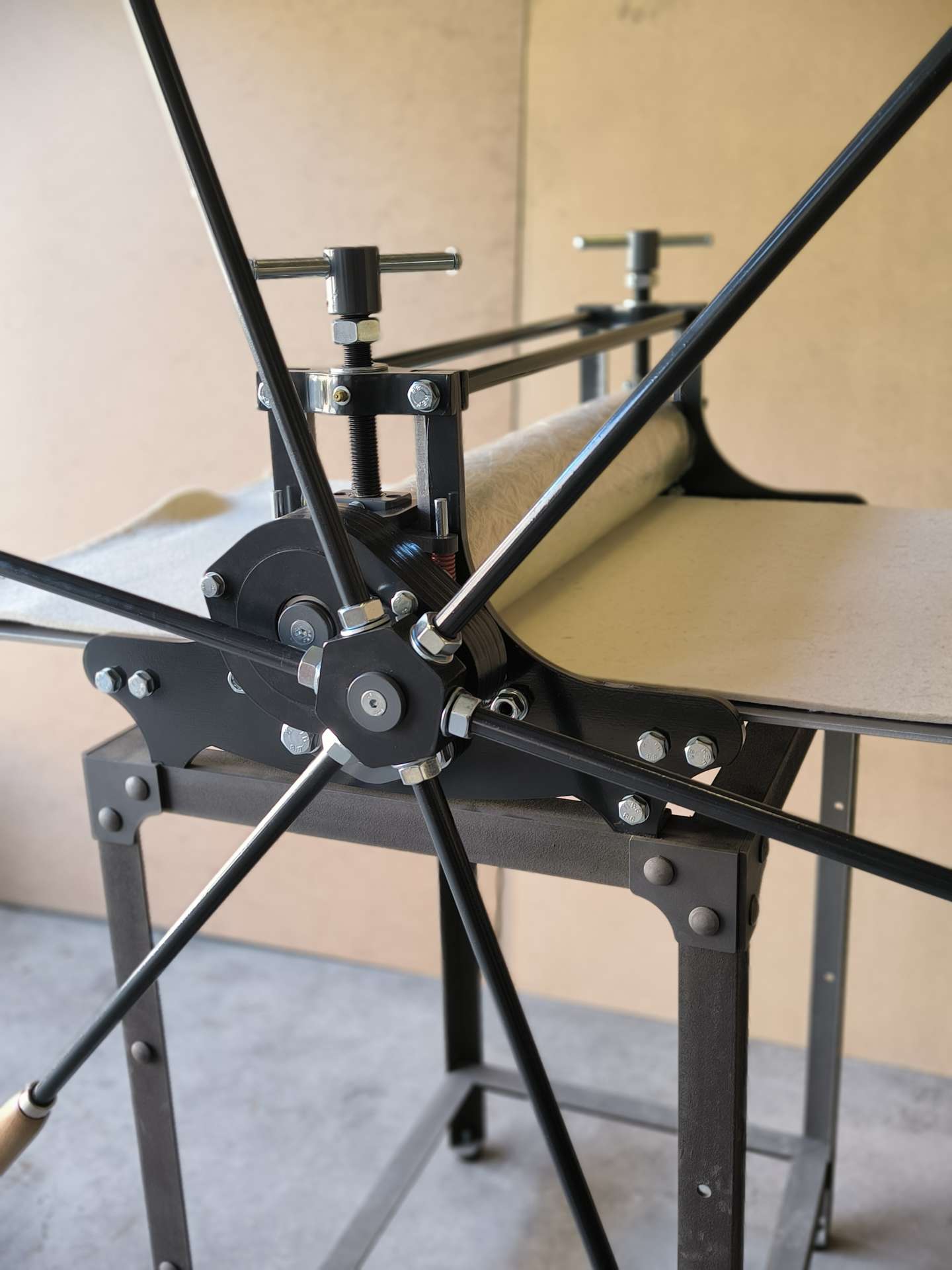

T600 TS with gearbox ARTEINA Etching Press

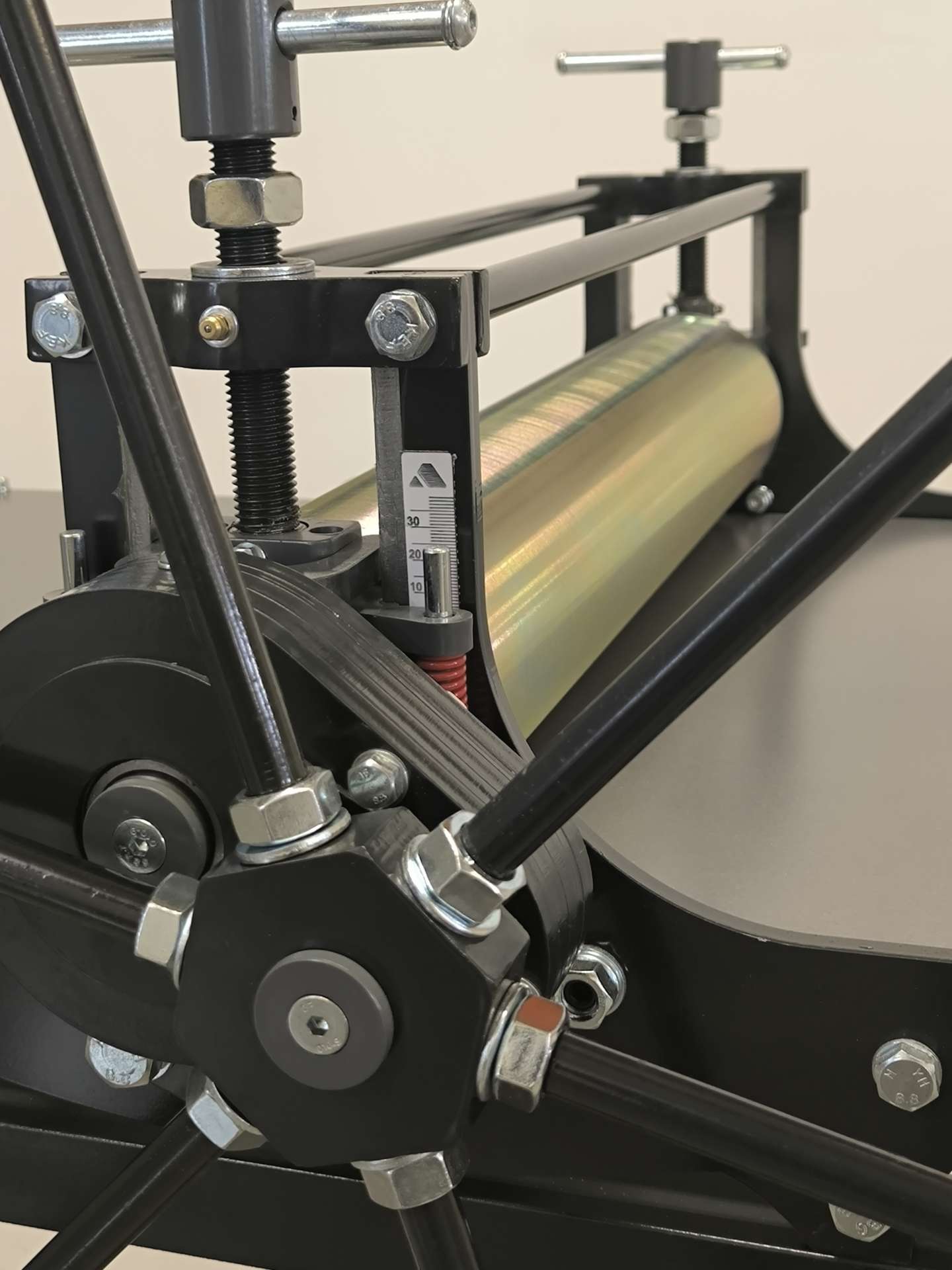

The T600 TS with gearbox ARTEINA Etching Press is our most versatile table top press, now with a gearbox 1/4 reduction. It is equipped with a 600x1000mm steel bed plate, which contains anti-fall metal toppers at the end of each side. Among its main features, the T600 TS has an upper traction and its rollers have a rust proofing treatment (bicromatados). The upper roller is assembled on tilting bearings, and the press contains springs which help the lifting of the upper roller. The useful graduated strips help with the height measurement, and the lock fixing system in the spindles allow to maintain the same pressure during all the working process. The etching press can be also complemented by an optional detachable metal table (not included).



Specifications and technical details:

  • 600x1000mm and 6mm thickness steel bed plate.
  • Gearbox 1/4.
  • Upper traction.
  • 120mm Ø upper roller.
  • Bicromatados rollers (rust proofing treatment).

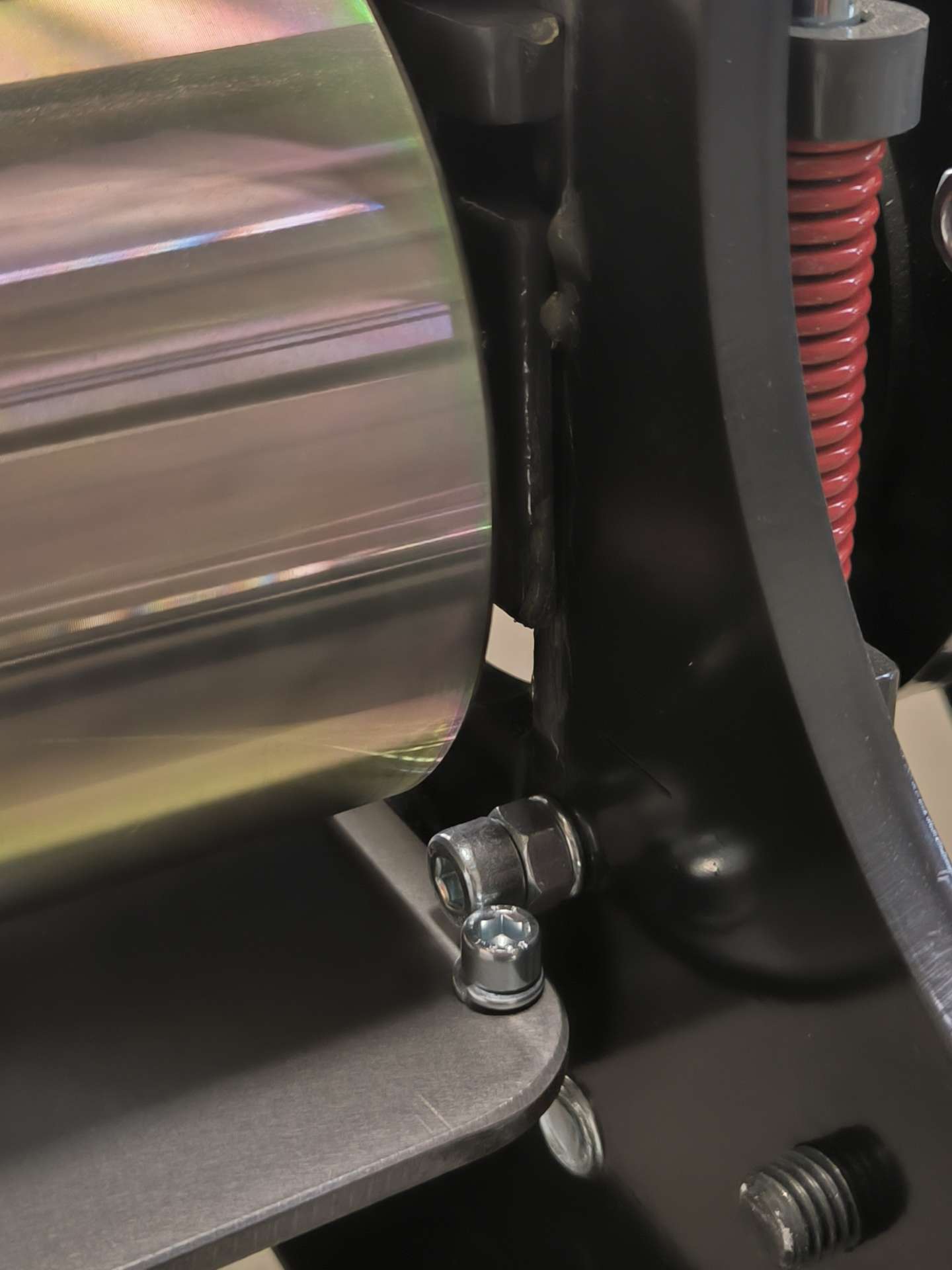

  • Upper roller assembled on tilting bearing.
  • It helps to lift the upper roller, assisted by springs.
  • Upper roller height Measurement system by graduated strips.
  • Steel spindles M20.
  • Fixative pressure in the spindles, which allows us to keep the same pressure along all the working series.
  • Driven by 6 blades with wooden handles.
  • Gliding movement helped by rotating shafts.
  • Positioning side screws, in order to guide the steel bed plate correctly.
  • Equipped with a free 3mm felt.
  • Epoxi 2 components paint.
  • Detachable Metal Table not included.
